| Engine manufacturer | Deutz |
| Motor type | TCD 2.9 L4 S5 |
| Cylinder | 4 |
| Drive output | 55.4 kW 55.4 kW |
| Drive output | 74.3 HP 75 PS |
| At max. rpm | 2,300 rpm 2,300 U/min |
| Cylinder capacity | 176.97 in³ 2,900 cm³ |
| Type of coolant | Water/charge air |
| Exhaust standard level | V |
| Exhaust aftertreatment | DOC/DPF |
| Operating voltage | 12 V |
| Battery | 100 Ah |
| Alternator | 85 A |
| Operating weight | 11,905 lb 5,400 kg |

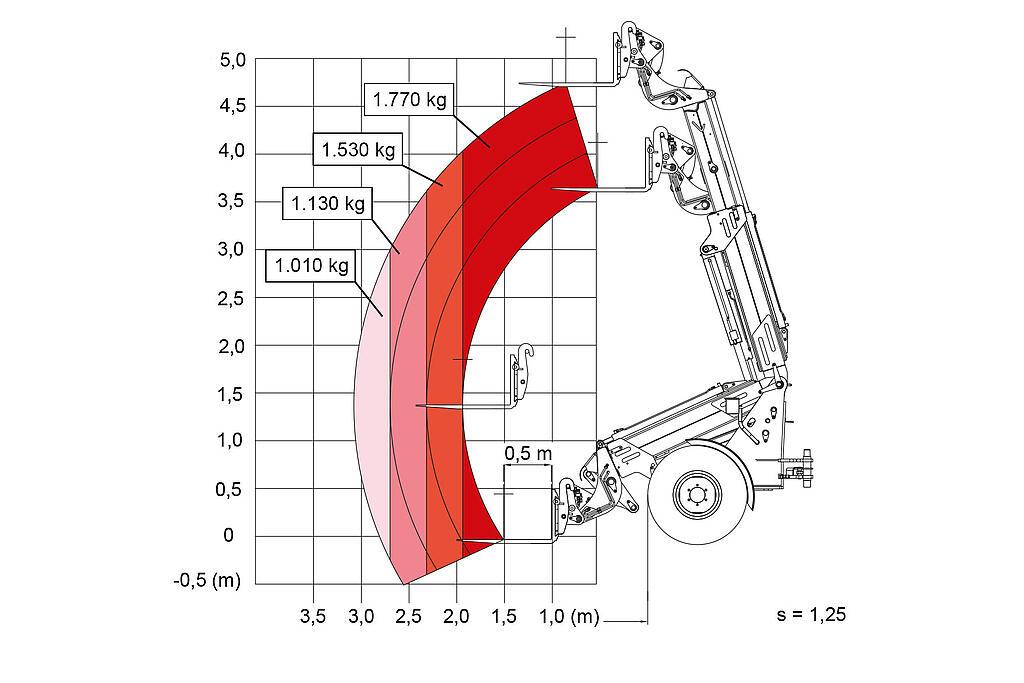

| Tipping load with bucket – machine straight, loading frame horizontal | 6,206 lb 2,815 kg |
| Tipping load with bucket – machine pivoted, loading frame horizontal | 5,315 lb 2,411 kg |
| Tipping load with bucket – machine straight (extended) | 3,426 lb 1,554 kg |
| Tipping load with bucket – machine pivoted (extended) | 2,866 lb 1.300 kg |

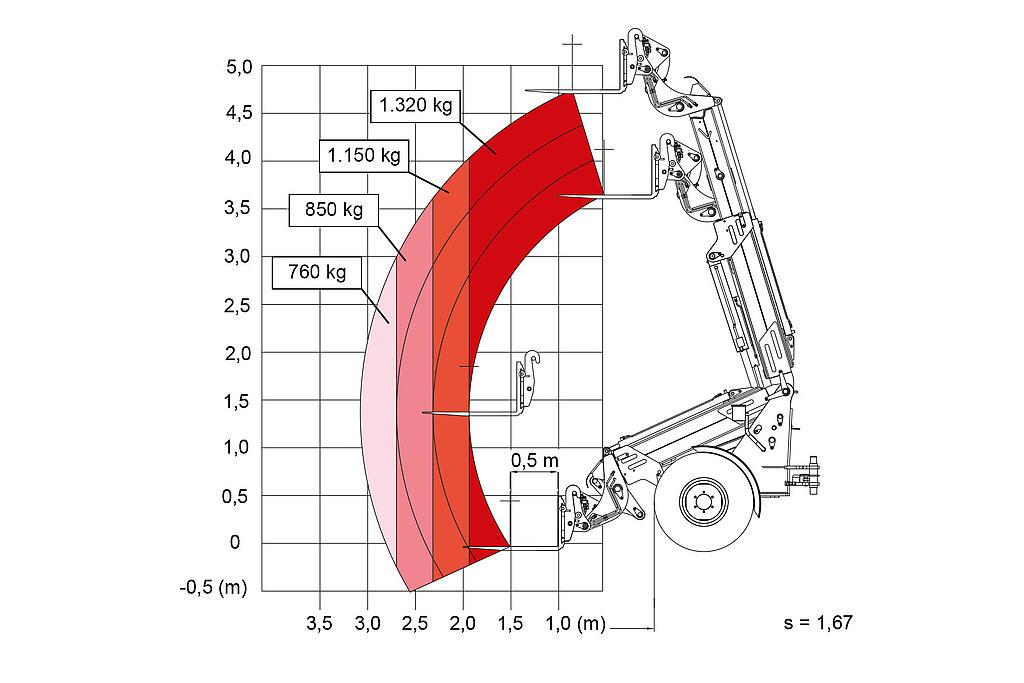

| Tipping load with pallet fork – machine straight, loading frame horizontal | 5,666 lb 2,570 kg |
| Tipping load with pallet fork – machine pivoted, loading frame horizontal | 4,866 lb 2,207 kg |
| Tipping load with pallet fork – machine straight (extended) | 3,327 lb 1,509 kg |
| Tipping load with pallet fork – machine pivoted (extended) | 2,782 lb 1,262 kg |
| Driver's cab | Cab |
| Tank capacity for fuel | 21.66 US gal 82 l |
| Tank capacity for hydraulic oil | 17.44 US gal 66 l |
| Type of drive | Hydrostatic |
| Drive unit | universal joint shaft |
| Speed levels | 2 |
| Axle | PA 1400 (PA 1422) |
| Travel speed Standard | 0-12,43 mph 0-20 km/h |
| Travel speed Option 1 | 0-18,64 mph 0-30 km/h |
| Operating brake | Hydrostatic drive system acting on all 4 wheels (wear-free) |
| Parking brake | Service and parking brake in the drive train acts on all 4 wheels |
| Differential lock | 100 % front axle + rear axle |
| Drive hydraulics working pressure (max.) | 6527 psi 450 bar |
| Work hydraulics discharge volume (max.) | 19,55 (21,93-27,21) gpm 74 (83-103) l/min |
| Work hydraulics working pressure (max.) | 3408 psi 235 bar |
| Lifting cylinder | 1 |
| Tipping cylinder | 1 |
| Quick change system | hydraulic |
| Steering type | Hydraulically activated articulated pendulum steering |
| Steering cylinder | 1 |
| Oscillating angle | ±12 degree |
| Average sound power level LwA (cabin) | 99.9 dB(A) |
| Guaranteed sound power level LwA (cabin) | 101 dB(A) |
| Specified sound pressure level LpA (cabin) | 74 dB(A) |
| Free text |
FSD = operator's canopy DPF = diesel particulate filter DOC = diesel oxidation catalyst SCR = selective catalytic reduction Tipping load calculation according to ISO 14397 |
