| - | Anvelope standard | 10.5 / 80 - 18 BKT AS ET17 10.5 / 80 - 18 BKT AS ET17 | ||||

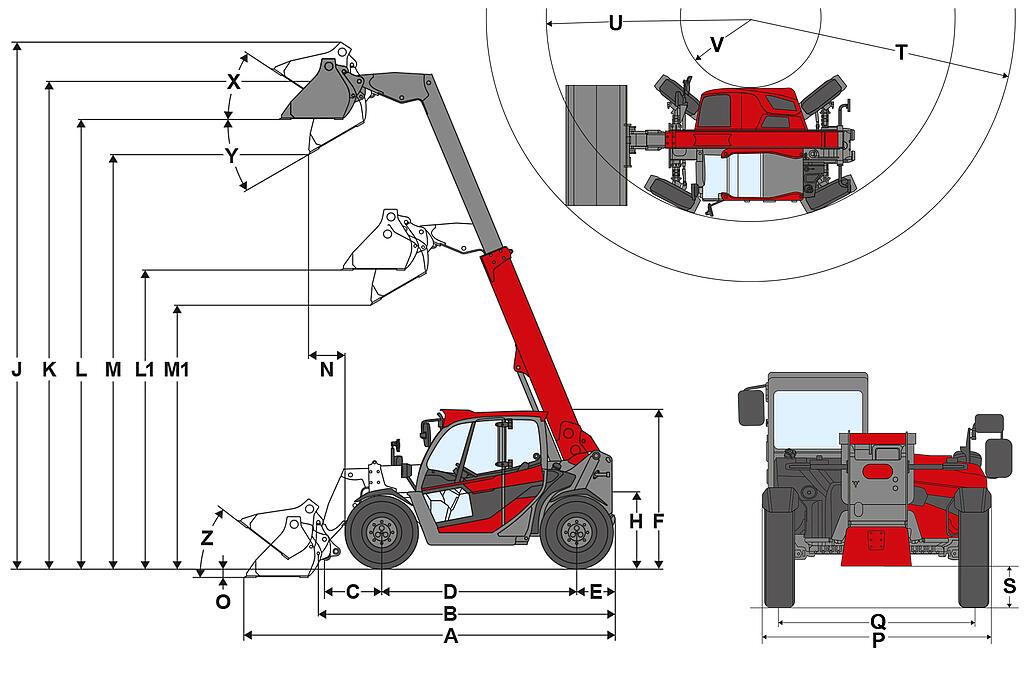

| A | otal length | 4.665 mm 183,7 in | ||||
| B | otal length without bucket | 3.887 mm 153,0 in | ||||
| C | ucket pivot point (to center of axle) | 720 mm 28,3 in | ||||
| D | heel base | 2.449 mm 96,4 in | ||||
| E | ear overhang | 487 mm 19,2 in | ||||
| F | eight with cab | 1.995 mm 78,5 in | ||||
| H | eat height | 957 mm 37,7 in | ||||
| J | otal working height | 6.618 mm 260,6 in | ||||
| K | ucket pivot point (max. lift height) | 6.123 mm 241,1 in | ||||
| L | oad-over height telescopic arm extended | 5.642 mm 222,1 in | ||||
| L1 | oad-over height telescopic arm retracted | 3.747 mm 147,5 in | ||||
| M | umping height telescopic arm extended | 5.201 mm 204,8 in | ||||
| M1 | umping height telescopic arm retracted | 3.307 mm 130,2 in | ||||
| N | each (at M) | 454 mm 17,9 in | ||||
| O | igging depth | 121 mm 4,8 in | ||||
| P | otal width | 1.900 mm 74,8 in | ||||
| Q | rack width | 1.660 mm 65,4 in | ||||
| S | round clearance | 285 mm 11,2 in | ||||
| T | aximum radius | 4.337 mm 170,7 in | ||||
| U | adius on the outer edge | 3.347 mm 131,8 in | ||||
| V | nner radius | 1.161 mm 45,7 in | ||||
| X | ollback angle at max. lift height | 34 ° 34 ° | ||||
| Y | umping angle | 30 ° 30 ° | ||||
| Z | ollback angle on ground | 38 ° 38 ° |
